Export Conventional and GNSS Data from Infinity to STAR*NET

Infinity Release 5.0.0 can export Conventional and GNSS data to STAR*NET format.


This export solution offers capabilities that differ from the STAR*LeicaDBX converter and provides an alternate workflow:

  • Station IDs, Target heights etc. can be edited in Infinity before export
  • Direction sets created from sets of angles will be merged into a single direction set for each occupation to better model the network and to reduce how often incomplete sets of angles can affect your results.
  • Sets of angles "Training shots" will be included as input and grouped so they can be disabled if required.
  • Tilt corrected RTK GNSS can be exported directly to STAR*NET
  • Post Processed GNSS can be exported

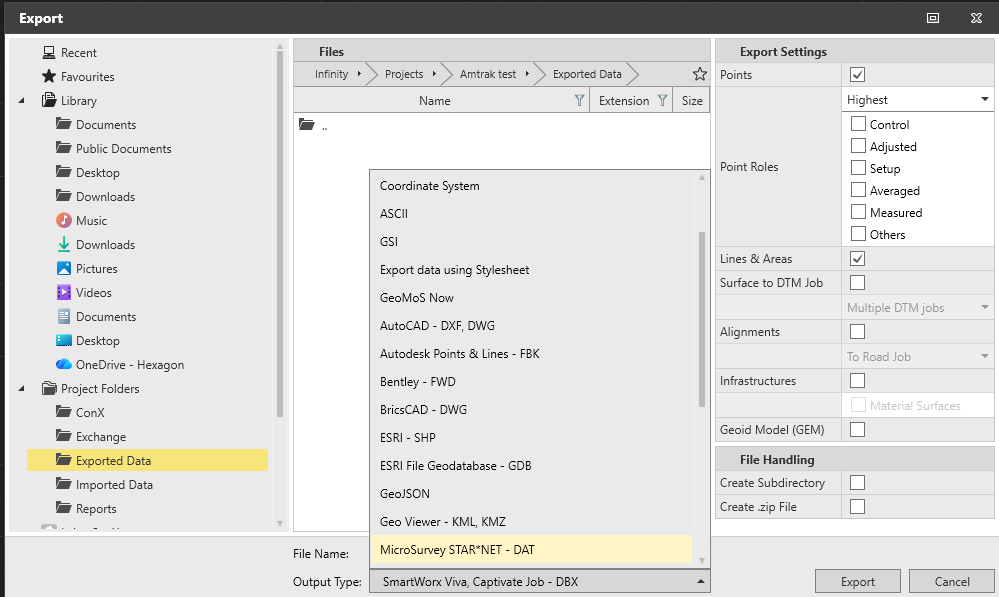

The STAR*NET Export Option is available in the Exported Data dialog:



Using the new Export Option:

  1. Launch Infinity
  2. Open the project with data you'd like to export to STAR*NET
  3. Export
  4. Set your export folder and options
  5. Select Output type "MicroSurvey STAR*NET DAT"
  6. Enter a File Name
  7. Export
  8. Use Windows File Explorer to open the folder set in step 4 and copy your dat file to the location of your STAR*NET project


The dat file can now be added to a STAR*NET Project using the "+" icon in the input panel:





Choose files or drag and drop files
Was this article helpful?
Yes
No

  1. James Johnston

  2. Posted
  3. Updated

Comments

  1. topo-praxis

    Hello,

    I own Infinity 5 and i have the following issue.

    When i import to Infinity a Landxml file from my TS07 total station, i can export to a .dat file my conventional measurements.

    But when i import to Infinity the same measurements as a GSI file from my total station, i can' t export them to a .dat file.


    I am i doing something wrong, or Infinity can't convert leica GSI measurement files to Starnet .dat format?
